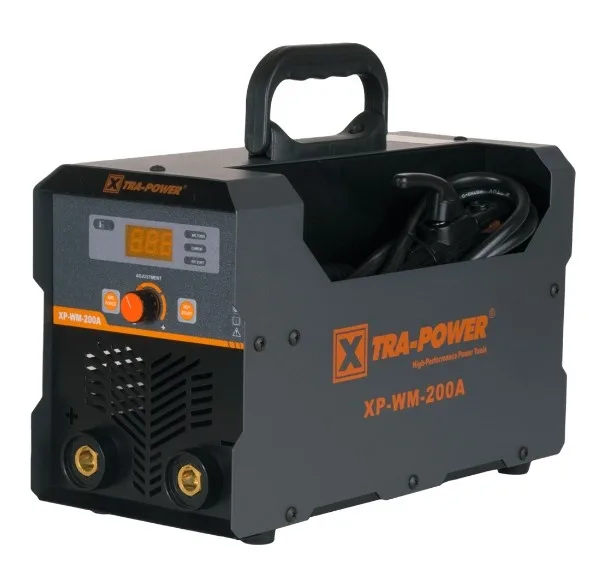

Xtra-Power XP-WM ARC WELDING MACHINE
Rated Input Current: 28A Output Current: 20-200(A) About this item: Digital display Semiconductor device Professional Welding Machine Used Insulated gate bipolar transistor technology IGBT technology makes the device smaller and lighter It generates heat that melts the metal parts to join these part
Description
Rated Input Current: 28A Output Current: 20-200(A) About this item: Digital display Semiconductor device Professional Welding Machine Used Insulated gate bipolar transistor technology IGBT technology makes the device smaller and lighter It generates heat that melts the metal parts to join these parts Easy to weld stainless steel, alloy steel, carbon steel, copper alloy, and other nonferrous metal Package Contents 1 unit Welding Machine 1 unit Electrode Holder 1 unit Helmet 1 unit Earth Clamp 1 unit Brush Hammer 1 unit User Manual Specifications Power Source Type: Double Insulation Electric Corded Brand: XTRA-POWER Colour: Grey & Black Rated Voltage: AC220V±15% Rated Frequency: 50/60HZ Rated Input Current: 28A No Load Voltage: 68V Output Current: 20-200(A) No Load Loss: 40W Duty Cycle: 60% Power Factor: 0.73 Electrode Diameter: 1.6-4.0MM Sizes • 200 AMP · 6.200 kgs · 420 X 220 X 270MM • 250 AMP · 6.600 Kgs · 450 X 280 X 220MM • 300 AMP · 7.200 Kgs · 460 X 230 X 285 MM
