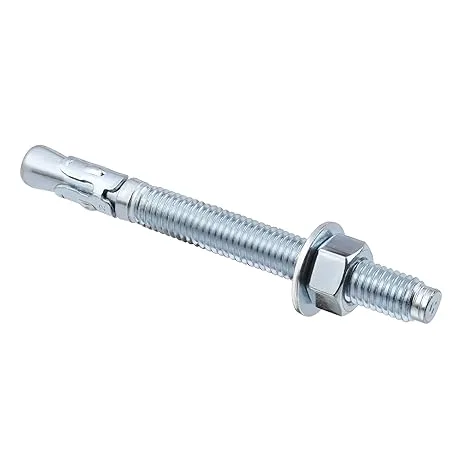

Wedge Anchor Zinc Plated, Heavy Duty, Fastener for Concrete, (White)
Number of sticks - 10 Pcs Total length - 75MM Nut outer size - 13 no.
Description

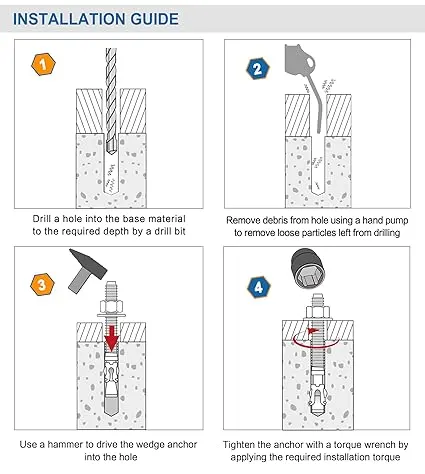

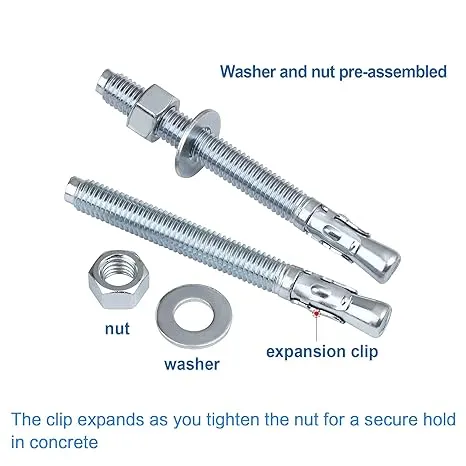

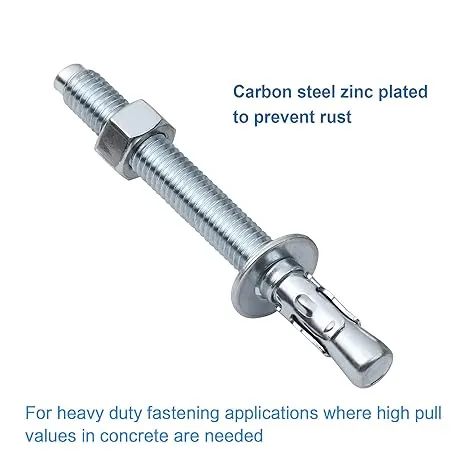

Number of sticks - 10 Pcs Total length - 75MM Nut outer size - 13 no. Our wedge anchor is made from high quality carbon steel, and is zinc plated to prevent rust Drill bit diameter/Hole diameter is the same as anchor diameter. Use a drill bit to drill a hole in the base material (Concrete only) The wedge anchor is a torque-controlled, wedge expansion anchor. The required installation torque of the anchor is 40 ft/lbs. The concrete anchor is for heavy duty fastening applications where high pull out values in concrete are needed. It is for concrete only, not for block or brick base material The wedge anchor is used in fastening sheet metal, steel and aluminum angles, or wood to concrete. The wedge anchor is ideal for structural anchorage, storage racking anchorage, machinery and hand rails installation Specifications Material: Carbon Steel Exterior Finish: Steel,Zinc Fastener Type: Anchor Bolt Thread Style: Right Hand Country of origin: India Sizes • 8 X 75MM · 280 Gms · 50 X 75MM • 8 X 100MM · 350 gms · 50 X 100MM • 10 X 75MM · 470 Gms · 60X75MM • 10 X 100MM · 620 Gms · 60X100 MM • 10X125MM · 700 Gms · 60X125MM • 10X150MM · 880 gms · 60X150 MM • 12 X 100MM · 915 Gms · 65X100MM • 12 X 125MM · 1.070 Kgs · 65X125MM • 12 X 150MM · 1.230 Kgs · 65X150MM • 12 X 200MM · 1.800 Kgs · 70X200MM • 16 X 100MM · 1.680 Kgs · 90X100MM • 16 X 125MM · 1.960 Kgs · 90X125MM • 16 X 150MM · 2.290 Kgs · 90X150MM • 16 X 200MM · 2.900 Kgs · 90X200MM • 16 X 250MM · 1.750 Kgs · 50X250MM • 16 X 300MM · 2.300 Kgs · 80X300MM
